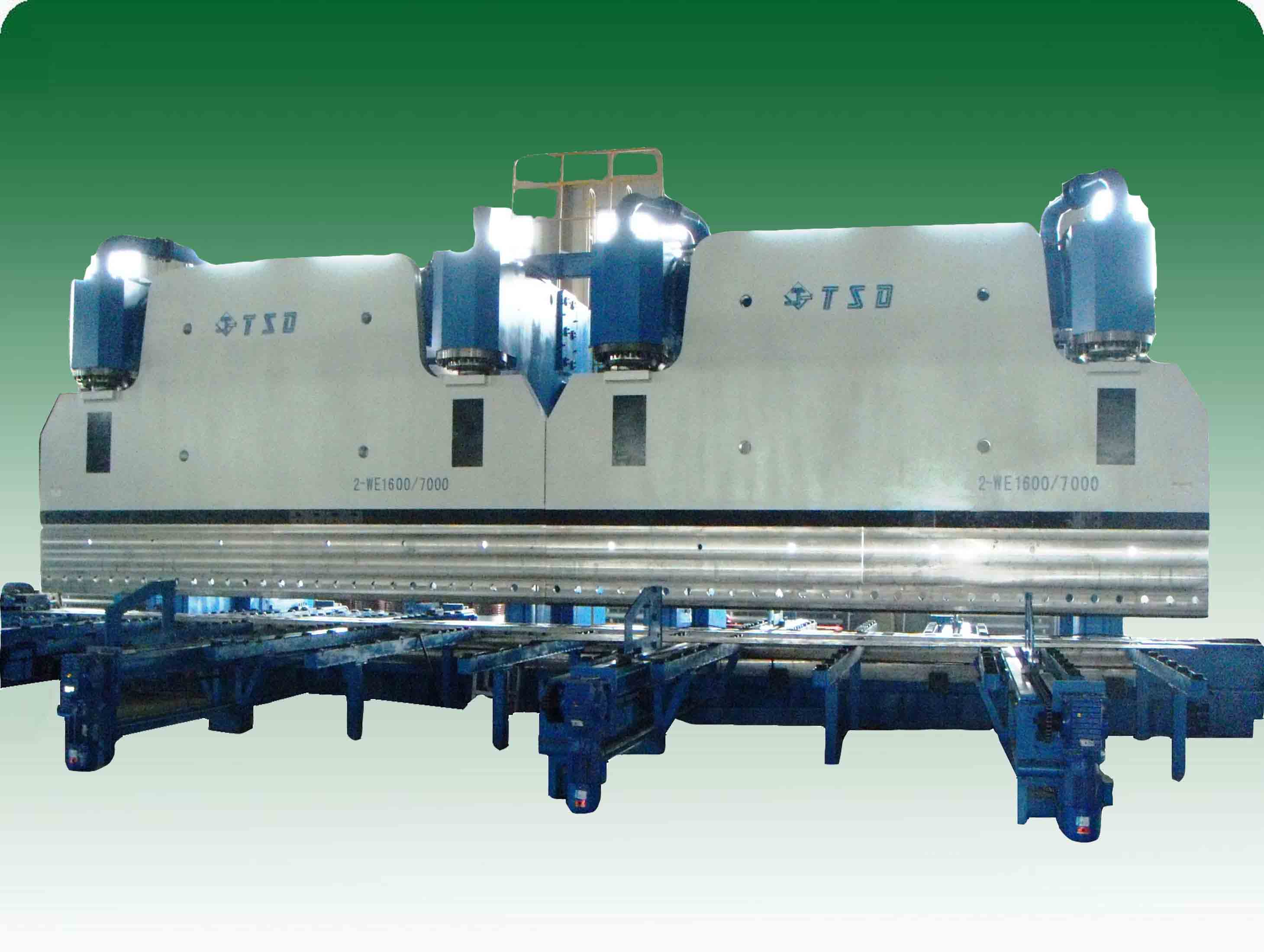

雙機聯動折彎機
 用途及特點
本系列機床是用來對金屬板料進行折彎的通用設備，配上不同的模具，可折制各種幾何形狀的工件。廣泛運用于飛機、船舶、汽車、工程機械、電力燈桿和輸送變電等行業。本機采用鋼板整體焊接結構，剛性好、強度高、為液壓驅動、電氣液壓控制，可以實現滑塊快速下行、慢速下行、折彎保壓、快速返程及中途停止，有點動、單次和連續三種操作方式，即可聯機操作亦可由任意一臺機床單獨操作?；瑝K的行程上、下止點均可調整，上止點調整可控制滑塊返程高度，提高生產率，下止點調整可實現自由折彎，折制不同角度的工件，切重復定位精度高。后擋料為機動，電磁調速電機驅動，軸環表數碼管顯示。
主要技術參數
|
規格型號Type
|
公稱壓力
nominal pressure(KW)
|
工作臺長度
length of table(mm)
|
立柱間距離
distance between uprights(mm)
|
喉口深度
Throat depth(mmm)
|
滑塊行程
Ram stroke(mm)
|
滑塊行程
速度
Ram stroke speed(mm/s)
|
最大開啟高度
Max. open height(mm)
|
電機 功率
Main motor power(KW)
|
重量
Weight(Ton)
|
外形尺寸
長×寬×高
Overall dim(mm)
|
|
2-WE67Y-100/3200
|
2×1000
|
2×3200
|
2600
|
320
|
100
|
7
|
320
|
2×7.5
|
15
|
6830×2050×2665
|
|
2-WE67Y-100/4000
|
2×1000
|
2×4000
|
3200
|
320
|
150
|
7
|
350
|
2×7.5
|
18
|
8430×2050×2665
|
|
2-WE67Y-160/3200
|
2×1600
|
2×3200
|
2600
|
320
|
200
|
8
|
425
|
2×15
|
20.6
|
6830×2050×2665
|
|
2-WE67Y-160/4000
|
2×1600
|
2×4000
|
3200
|
320
|
200
|
8
|
425
|
2×15
|
26
|
8430×2050×2665
|
|
2-WE67Y-300/3200
|
2×3000×
|
2×3200
|
2600
|
350
|
250
|
7
|
500
|
2×22
|
52
|
6640×2625×4435
|
|
2-WE67Y-300/4000
|
2×3000×
|
2×4000
|
3200
|
350
|
250
|
7
|
500
|
2×22
|
55
|
8640×2625×4435
|
|
2-WE67Y-300/5000
|
2×3000
|
2×5000
|
4000
|
350
|
250
|
7
|
500
|
2×22
|
58
|
10640×2625×4435
|
|
2-WE67Y-300/6000
|
2×3000
|
2×6000
|
4800
|
350
|
250
|
7
|
500
|
2×22
|
62
|
12640×2625×4435
|
|
2-WE67Y-400/4000
|
2×4000
|
2×4000
|
3200
|
400
|
320
|
7
|
630
|
2×30
|
68
|
8640×2625×4435
|
|
2-WE67Y-400/5000
|
2×4000
|
2×5000
|
4000
|
400
|
320
|
7
|
630
|
2×30
|
74
|
10640×2625×4435
|
|
2-WE67Y-400/6000
|
2×4000
|
2×6000
|
4800
|
400
|
320
|
7
|
630
|
2×30
|
82
|
12640×2625×4435
|
|
2-WE67Y-400/7000
|
2×4000
|
2×7000
|
5100
|
400
|
320
|
7
|
630
|
2×30
|
86
|
14640×2625×4435
|
|
2-WE67K-500/4000
|
2×5000
|
2×4000
|
3200
|
1100
|
400
|
7
|
1000
|
2×37
|
108
|
8800×2900×5700
|
|
2-WE67K-500/5000
|
2×5000
|
2×5000
|
4000
|
1100
|
400
|
7
|
1000
|
2×37
|
116
|
10800×2900×5700
|
|
2-WE67K-500/6000
|
2×5000
|
2×6000
|
4800
|
1100
|
400
|
7
|
1000
|
2×37
|
136
|
12800×2900×5700
|
|
2-WE67K-500/7000
|
2×5000
|
2×7000
|
5100
|
1100
|
400
|
7
|
1000
|
2×37
|
150
|
14800×2900×5700
|
|
2-WE67K-650/5000
|
2×6500
|
2×5000
|
4000
|
1100
|
400
|
7
|
1000
|
2×55
|
140
|
10800×2900×5700
|
|
2-WE67K-650/6000
|
2×6500
|
2×6000
|
4800
|
1100
|
400
|
7
|
1000
|
2×55
|
150
|
12800×2900×5700
|
|
2-WE67K-650/7000
|
2×6500
|
2×7000
|
5100
|
1100
|
400
|
7
|
1000
|
2×55
|
165
|
14800×2900×5700
|
|
2-WE67K-650/8000
|
2×6500
|
2×8000
|
6100
|
1100
|
400
|
7
|
1000
|
2×55
|
180
|
16800×2900×5700
|
|
2-WE67K-800/6000
|
2×8000
|
2×6000
|
4800
|
1200
|
400
|
7
|
1330
|
2×2×30
|
225
|
12900×4130×6300
|
|
2-WE67K-800/7000
|
2×8000
|
2×7000
|
5100
|
1200
|
400
|
7
|
1330
|
2×2×30
|
234
|
14900×4130×6300
|
|
2-WE67K-800/8000
|
2×8000
|
2×8000
|
6100
|
1200
|
400
|
7
|
1330
|
2×2×30
|
240
|
16900×4130×6300
|
|
2-WE67K-800/10000
|
2×8000
|
2×10000
|
7800
|
1200
|
400
|
7
|
1330
|
2×2×30
|
260
|
20900×4130×6380
|
|
2-WE67K-1000/6000
|
2×10000
|
2×6000
|
4800
|
1600
|
400
|
6
|
1330
|
2×2×37
|
275
|
12900×6000×6300
|
|
2-WE67K-1000/7000
|
2×10000
|
2×7000
|
5100
|
1600
|
400
|
6
|
1330
|
2×2×37
|
285
|
14900×6000×6300
|
|
2-WE67K-1000/8000
|
2×10000
|
2×8000
|
6100
|
1600
|
400
|
6
|
1330
|
2×2×37
|
360
|
16900×6000×6300
|
|
2-WE67K-1000/10000
|
2×10000
|
2×10000
|
7800
|
1600
|
400
|
6
|
1330
|
2×2×37
|
325
|
20900×6000×6380
|
|
2-WE67K-1200/6000
|
2×12000
|
2×6000
|
4800
|
1600
|
400
|
6
|
1330
|
2×2×45
|
325
|
12900×6300×6300
|
|
2-WE67K-1200/7000
|
2×12000
|
2×7000
|
5100
|
1600
|
400
|
6
|
1330
|
2×2×45
|
335
|
14900×6300×6300
|
|
2-WE67K-1200/8000
|
2×12000
|
2×8000
|
6100
|
1600
|
400
|
6
|
1330
|
2×2×45
|
360
|
16900×6300×6300
|
|
2-WE67K-1200/10000
|
2×12000
|
2×10000
|
7800
|
1600
|
400
|
6
|
1330
|
2×2×45
|
390
|
20900×6300×6380
|
|
2-WE67K-1600/7000
|
2×16000
|
2×7000
|
5100
|
1600
|
400
|
6
|
1330
|
2×2×55
|
358
|
14900×6430×6300
|
|
2-WE67K-1600/8000
|
2×16000
|
2×8000
|
6100
|
1600
|
400
|
6
|
1330
|
2×2×55
|
375
|
12900×6430×6300
|
|
2-WE67K-1600/10000
|
2×16000
|
2×10000
|
7800
|
1600
|
400
|
6
|
1330
|
2×2×55
|
390
|
20900×6430×6300
|
|
2-WE67K-1600/12000
|
2×16000
|
2×12000
|
9100
|
1600
|
400
|
6
|
1330
|
2×2×55
|
415
|
24900×6430×6380
|
|
